NVT 10000

DESCRIÇÃO DO PRODUTO

NVT 10000

Classic design meets:

• IP67 Rated Weatherproofing
• Safety standards: SAE J706 and is CE marked.
• Chrome-plated freespool pull and turn control.
• High-temperature, sealed contactor featuring silver contact pads for excellent conductivity and longevity.

Rated Line Pull  10000lbs(4536kgs)single line

Motor(Series wound):  DC 12V: 6.3hp/4.5kW

DC 24V:6.9hp/5.2kW

Gear Box             3-Stage Planetary

Gear Ratio          196:1

Clutch   Pull and Turn

Braking Action  Mechanical, Automatic, 100% Load Holding

Fairlead               4 Way Roller Fairlead

Wire Rope          3/8″×85.3′(9.2mm×26m)

Remote               Waterproof handheld control 12.7′ (3.9m)

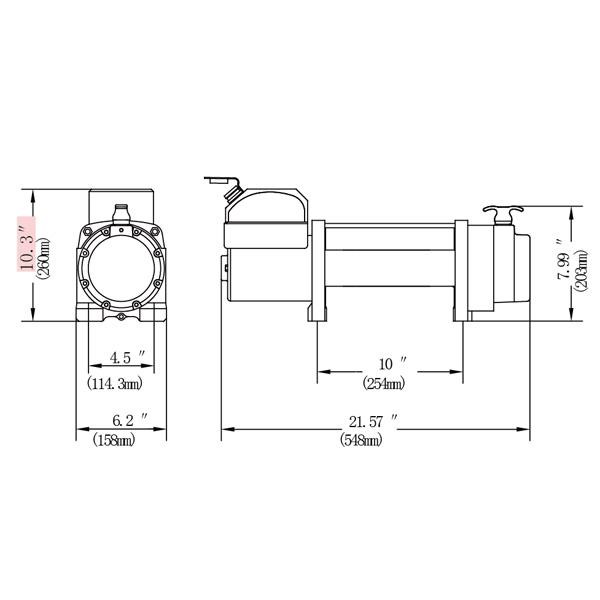

Dimensions        12v: 22.36″×6.2″×10.24″(568mm×158mm×260mm)

24v:22.36″×6.2″×10.63″(568mm×158mm×270mm)

Mounting Bolt Pattern  10″×4.5″(254mm×114mm)

Weight 12v: 89.3lbs(40.5kgs)

24v: 93.7 (42.5kg)

Performance

12V

Line pull lbs(kgs)              No Load               Max Load

Line speed FPM(MPM)                20.0(6.1)              5.2(1.6)

Motor current Amps     80           380

24V

Line pull lbs(kgs)              No Load               Max Load

Line speed FPM(MPM)                17.7 (5.4)             5.62(1.7)

Motor current Amps     70           220
