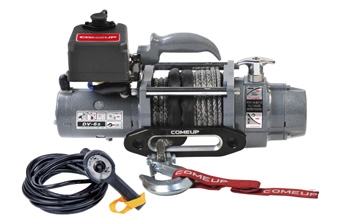

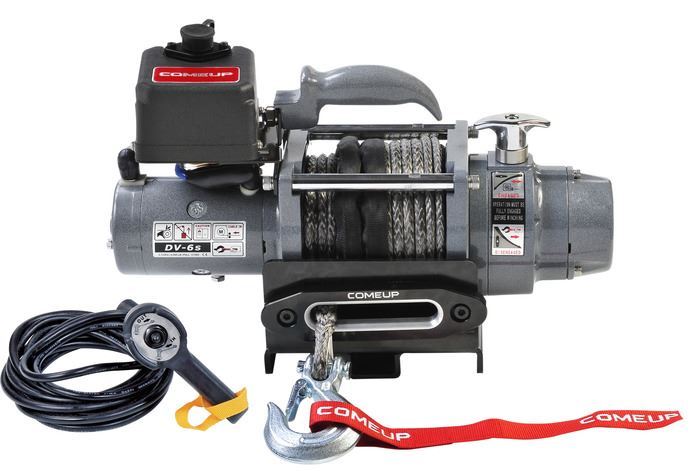

Guincho Come-UP DV6 S
Part number – PN 854752 (12V)
Rated line pull – 2,722 kg / 6,000 lb single line
Motor – 2,390 w / 3.2 hp 12V series wound
Gear ratio – 3-stage planetary 216:1
Clutch (freespooling) – Rotating ring gear
Brake (outside the drum) – Automatic, full load CBS (Cone Brake Structure)
Winch construction – Aluminum die cast housings with steel drum
Drum size – 63.5 x 125.5 mm (2.5” x 4.9”)
Control – Waterproof remote w/ 5 m (17′) cord
Rope type – Synthetic rope
Rope size – 8 mm x 24.4 m (5/16” x 80’)
Mounting bolts pattern – 152.4 mm x 114 mm (6” x 4.5”)
Winch weight (including rope) – 19 kg / 41.9 lb
Gross weight – 21.6 kg / 47.6 lb
Box dimension, (L x D x H) – 505 x 210 x 340 mm (19.9″ x 8.3″ x 13.4″)
